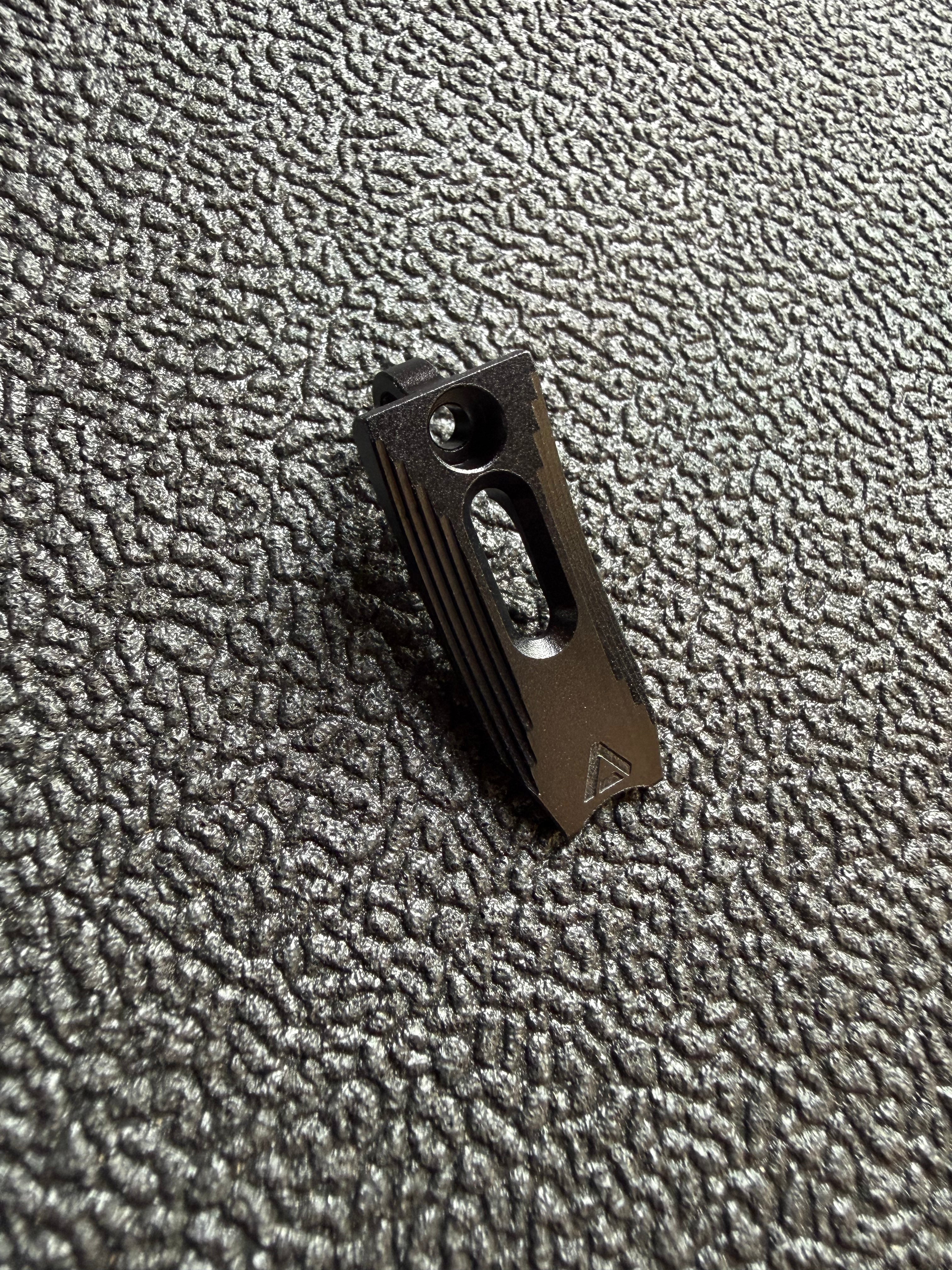

DELTA-ZFR™ (ZERO FRICTION ROLLER)
DELTA-ZFR™ KEY FEATURES
-
TRIANGULATED DESIGN:
- Three-point contact bearing configuration
LARGE ROLLERS:
- Inspired by high-performance roller skates, creating an easy to maintain pull
SNAP-FIT | O-RING:
- 3-Way ready! #006 O-Ring snaps in or can be removed to fit various rod diameters
ADJUSTABILITY:
- Stock screws center in bottom track for vertical slack adjustment
COMPATIBILITY:
- Compatible with Gunfighter V1 and V1.5 frames
-
PERFORMANCE BEARINGS:
- Choose between high quality ABEC-5 or Full Ceramic options
GUIDED OPERATION:
- 304 Stainless Steel V-Grooved tracks cradle matching V-Shaped rollers for a linear pull and release
ZERO DRAG:
- CNC machined trigger features a profile thinner than the track width, ensuring drag-free side-wall operation
SELF-LUBRICATING ROLLERS:
- Brass rollers' lubricating properties ensure smooth operation overtime
-
OPTIMIZED SEAR SPRINGS:
- 2 Custom-Made stainless steel springs for both light and reliable sear returns
ANGLED RAMP:
- 20° ramp increase for faster sear activation
REDUCED WEIGHT:
- Ultra-machined 6061 T6 Aluminum plate cuts reciprocating mass to only 6g (11g total assembly) compared to the stock 24g
FINISH:
- Customize your build with Factory-Anodized Black, Clear, or Raw trigger plate options
GOLD CHAMBER™
GOLD CHAMBER™ KEY FEATURES
-
4X VOLUME:
- Extensively CNC machined for 4X increase in valve chamber volume
REDUCED WEIGHT:
- 65% lighter than stock red chamber (11g vs 32g)
NEW FRONT BLOCK OPTIONS:
- Now available in both 2k and Pre-2k threads
DUAL THREADED:
- Components can be flipped to utilize undamaged threads in case of accidental stripping
REPOSITIONED O-RING:
- Front O-Ring repositioned to isolate potential chamber leaks caused by VASA pin holes machined too deep
-
SPLIT-PIECE MODULAR DESIGN:
- Grip frame and valve components can remain in place, if desired, during front block disassembly or maintenance
INDEPENDENTLY FASTENED:
- Reduced potential stripping caused by misalignments when tightening two vertical threads in the stock one piece red chamber
SYMMETRICAL DESIGN:
- Intentionally designed for ease of installation, where each component offers dual mounting positions + a rear spring perch that installs from either direction with your 10-32 cocking rod
-
DUAL AIR-FLOW PASSAGES:
- Elongated air passages for twice the flow to the valve
VALVE SPRING OPTIMIZATION:
- Now compatible with both smaller 2k valve springs and the stock conical spring
SS VASA SCREW UPGRADE:
- Includes hollow Stainless Steel vasa screw for added volume and corrosion resistance
COMPATIBILITY:
- Direct fit into Meteor 11/16" lower tube markers. May fit other 11/16" markers or modified to work inside PRE-2k platforms
